Product Description

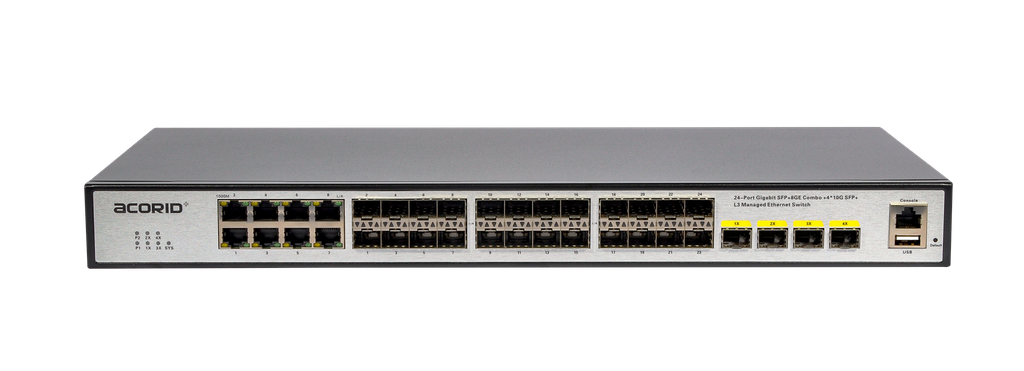

LS6100G-24F8T4X-L3M 10-Gigabit uplink 24-port all-optical managed switch is a convergent switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible all-gigabit access and high-speed Cost-effective 10 Gigabit uplink ports, supporting Layer 3 routing protocols, complete security protection mechanisms, complete ACL/QoS strategies and rich VLAN functions, easy to manage and maintain, and suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses.
Product performance
Stacking Capabilities
l Support Stacking of 8 units through a single IP address
l Support Unified management
l Support Redundancy mechanism
l Support High speed interconnect
Equipment Stability
l Support IPv4/IPv6 dual protocol stack platform based on Linux operating system
l Support multiple link redundancy and network redundancy protocols such as STP / RSTP / MSTP / ERPS / LACP
QoS Capabilities
l Support port speed and flow speed limit function
l Support classification based on service flow and Qos flow control function
l Support queue scheduling algorithms such as SP/WRR/SP+WRR
l Support port-based and service flow-based mirroring functions
Multi-service Capabilities
l Support DHCP Server and DHCP Relay
l Support L2-Tunnel
l Support Ethernet OAM protocol such as CFM / EFM
Routing Protocol
l Support static route
l Support dynamic route such as RIP / OSPF / BGP / ISIS
l Support IPV4/IPV6 dual protocol stack
l Support RIPng / OSPFv3
Safety Mechanism
l Support ACL security filtering mechanism, which can provide security control based on MAC, IP, L4 port
l Support ARP attack automatic protection
l Support DHCP attack automatic protection based on MAC Address
l Support DHCP snooping / IP-source-Guard / 802.1X and other security features
l Support link protection functions such as BFD, Flex Link, LACP and ERRP
l Support remote loop detection function
l Support CFM、EFM
l Support remote user authentication based on TACACS+, Radius, and Local user authentication
Network Management Function
l Support CLI based on RS232 serial port, Telnet and SSHv2
l Support WEB-based configure operation management, support SNMP V1/V2/V3
l Support remote upgrade or equipment through FTP and TFTP
Hardware specifications
Model | LS6100G-24F8T4X-L3M |
Downlink ports | 8*1000M Combo ports (8*10/100/1000M adaptive RJ45 ports, 8*1000M SFP optical ports) + 16 independent Gigabit SFP optical ports |
Uplink ports | 4*10G SFP+ |
LED indicator | P1, P2 PWR, Link / Act, SYS |
transmission mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Bandwidth | 368Gbps |
Packet Forwarding Rate | 95.23Mpps |
MAC address | 16K |
Standard protocol | IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3ae 10GBase IEEE802.3x Flow Control IEEE802.1p IEEE802.1x IEEE802.1d IEEE802.1s IEEE802.3az EEE |
Power supply | AC 100~240V 50/60HZ |
Size | 440mm × 220mm × 44mm |
working temperature | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
Software specifications
VLAN | Support 4K VLAN Support VLAN based on port, MAC and protocol Support dual Tag VLAN, port-based Static QinQ and Flexible QinQ Access/Trunk/Hybrid VLAN Swap |
Ethernet | Ethernet interface operating modes Ethernet interface operating rates Jumbo Frame Port enable/disable Flow-control TX/RX Port based storm-control Unknow unicast/multicast/broadcast storm-control Port-isolate |
Stack | Support Stacking of 8 units through a single IP address Support Unified management Support Redundancy mechanism Support High speed interconnect |
MAC | Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit Automatic learning and aging of MAC addresses |
ARP | Static and dynamic ARP entries Aging of ARP entries ARP-Proxy |
Port Control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
Port Aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports LAG load balance（SIP/DIP/SMAC/DMAC） |
Mirroring | Supports multi-port mirroring analysis Service flow-based image analysis |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide MAC, IP, L4 port and port level security control functions |
QoS | Traffic classification based on COS/DSCP (simple classification) Traffic classification based on ACL (complex classification) Traffic classification based on inner header of the tunnel packets Queue scheduling Remark the priority fields (COS/DSCP) of the packet based on ACL Flow redirection Flow mirror Traffic policing based on direction(in/out) of Port Traffic policing based on direction(in/out) of VLAN Traffic policing based on direction(in/out) of flow Traffic policing based on direction(in/out) of aggregated flow Queue based traffic shaping Port based traffic shaping SP（Strict Priority）scheduling WRR（Weighted Round Robin）scheduling SP + WRR mixed scheduling IPv4-v6 QoS |
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius & TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection |
Layer 3 | Support ARP learning and aging Support IPv4/IPv6 static route Support dynamic route RIP/OSPF/BGP/ISIS Support IPv4/IPv6 dual-stack platform Support VRRP、CLI、Telnet、WEB、SNMP V1/V2/V3、SSHv2 mode |
Terminal Services | Configurations through CLI Console Terminal service |
Maintenance | Per-module Debug features ICMP Debug CPU usage display and alarm Memory usage display and alarm Device temperature、PSU、FAN、status display and alarm User operation logs Management of logs, alarms, and debugging information VCT（Virtual Cable Test） Detailed Diagnostic-information collection Manual /Schedule reboot Reboot Information logging Ping IPv6 Ping Trace route Port/Flow/Remote mirror Multi-destination mirror（m:n） To CPU/From CPU packets statistics Time configuration Timezone |
System Security | SSHv1/v2 RADIUS TACACS+ Authentication Accounting Port based dot1x MAC based dot1x MAC/IP ACL Basic Mode ACL Port/VLAN/L4-Port ACL Time Range IP Source Guard Limitation on MAC address learning on interface Rate limit CPU Traffic Limit CLI/WEB/SNMP/Telnet/SSH filtering |
Spanning-Tree | Rapid Spanning-Tree Protocol Multi-instance Spanning-Tree Protocol |
Network Management | DHCP Server DHCP Relay DHCP Snooping DHCP Option60 DHCP Option82 SNTP（Simple Network Time Protocol） LLDP |
Configuration Management | In-band management interface and configuration Privileged user priority and privileged commands Network management based on SNMPv1/v2c/v3 Public and private MIB Public and private Trap Configuration and management based on WEB Restore factory default configuration |
File system | Upload and download files through FTP or TFTP Upload and download files through X modem |
System Management | Support FTP, TFTP file upload and download Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC1213 SNMP network management Support PING and Tracert Supports configuration management based on WEB pages Support the whole machine power failure alarm function |
Upgrade | Upgrade with the local image file Upgrade with the remote TFTP server Online upgrade U-boot |
Ordering Information
Product Description
LS6100G-24F8T4X-L3M | 8*1000M Combo ports (8*10/100/1000M adaptive RJ45 ports, 8*1000M SFP optical ports) + 16 independent Gigabit SFP optical ports + 4*10G SFP+ |
10/100/1000MOptical fiber module
GSFP-LX40 | LC | 10/100/1000M | Dual fiber, single mode，40Km,1310nm |
GSFP-LX20/13 | LC | 10/100/1000M | Single fiber, single mode，20Km,1310nm |
GSFP-LX20/15 | LC | 10/100/1000M | Single fiber, single mode，20Km,1550nm |
Specifications
Downlink Ports 8*1000M Combo ports (8*10/100/1000M RJ45 ports, 8*1000M SFP optical ports) 16 independent Gigabit SFP optical ports | Uplink ports 4*10G SFP+ |
Total Power Supply | LED Indicator P1, P2 PWR, Link / Act, SYS |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 128Gbps |
Packet Forwarding Rate 95.23Mpps | MAC Address 16K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3ae 10GBase |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
