Product Description

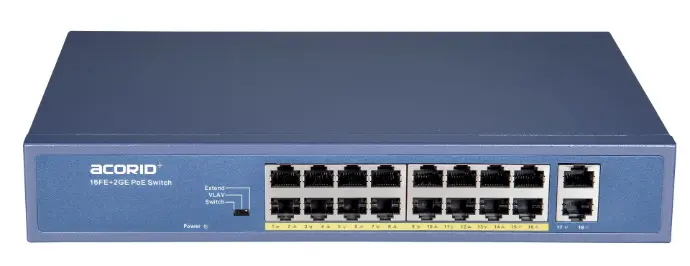

The LS1118P is a gigabit uplink 16-port 100G PoE switch developed by ACORID providing 16 10/100M adaptive RJ45 ports and 2 gigabit RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. All downlink ports support PoE+ power supply, with single port PoE power up to 30W and maximum PoE output power of 150W. As a PoE powered device, it can automatically detect and identify the standard powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
Physical Characteristics
Model | LS1118P |
Downlink Ports | 16*10/100M RJ45 ports |
Uplink Port | 2*1000M RJ45 ports |
PoE Standard Power Supply | IEEE 802.3at、IEEE 802.3af |
Total Power Supply | 150W |
LED Indicator | Link / Act |
Transmission Mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Backplane Bandwidth | 7.2Gbps |
Packet Forwarding Rate | 5.36Mpps |
MAC Address | 4K |
Standard Protocol | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE |
Power Supply | AC 200~240V 50/60HZ |
Size | 270mm × 180mm × 44mm |
Environmental Specification | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
Product Description
LS1118P | 16*10/100M Auto-negotiation RJ45 port + 2*1000M Uplink ports |
Specifications
Downlink Ports 16*10/100M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 150W | LED Indicator Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 7.2Gbps |
Packet Forwarding Rate 5.36Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 200~240V 50/60HZ | Size 270mm × 180mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
