Product Description

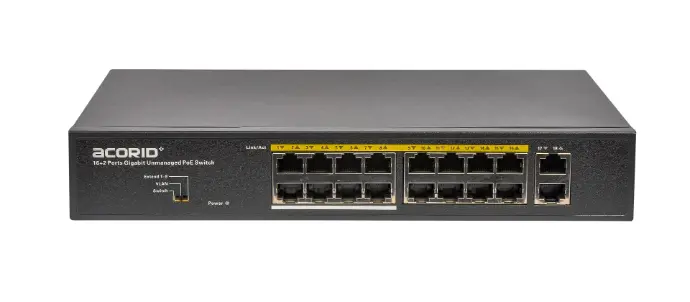

GLS1118P is a 16-port Gigabit PoE switch independently developed by ACORID, which provides 16* 10/100/1000M adaptive RJ45 ports. 2 Gigabit RJ45 ports, each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Support IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating mode
● Provide two swap modes.
● Standard mode: All ports can be freely communicated after turning on. Applicable to ordinary data transmission environments
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● EXTEND mode: After opening, the downstream 1-8 port rate becomes 10m, the transmission distance is up to 250m
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
Physical Characteristics
Model | GLS1118P |
Downlink Ports | 16*10/100/1000M RJ45 ports |
Uplink Port | 2*1000M RJ45 |
PoE Standard Power Supply | IEEE 802.3at、IEEE 802.3af |
Total Power Supply | 150W |
LED Indicator | PWR，Link / Act |
Transmission Mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Backplane Bandwidth | 36Gbps |
Packet Forwarding Rate | 26.78Mpps |
MAC Address | 4K |
Port lightning protection | 4KV |
Standard Protocol | IEEE802.3i 10 BASE-T， IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3x Flow Control IEEE802.3az EEE |
Power Supply | AC 100~240V 50/60HZ |
Size | 270mm ×181mm × 44mm |
Environmental Specification | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
Product Description
GLS1118P | 16*10/100/1000M Auto-negotiation RJ45 port + 2*1000M Uplink |
Specifications
Downlink Ports 16*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 150W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 36Gbps |
Packet Forwarding Rate 26.78Mpps | MAC Address 4K |
Port lightning protection 4KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 270mm ×181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
