Product Description

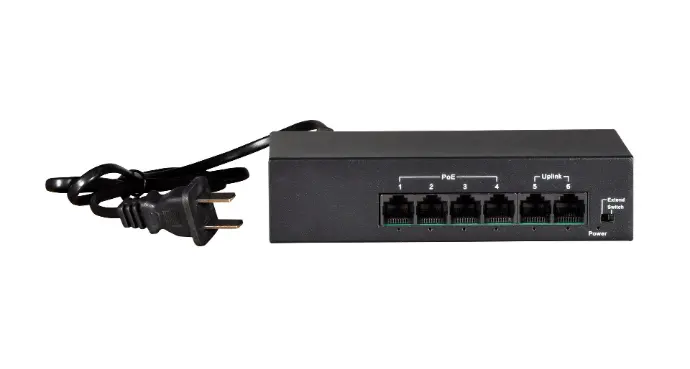

CS1106PM is a 6-port 100Mbps PoE switch independently developed by acorid Communication, providing 4 10/100M adaptive RJ45 ports and 2 100Mbps RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W, and the maximum PoE output power of the entire machine is 53W. As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
This device is plug and play, requires no configuration, and is easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides two exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● Automatic detection and recognition of standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
Physical Characteristics
Model | CS1106PM |
Downlink Ports | 4*10/100M RJ45 ports |
Uplink ports | 2*100M RJ45 Uplink ports |
Total Power Supply | 53W |
LED Indicator | Power, Link / Act |
Transmission Mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Backplane Bandwidth | 1.2Gbps |
Packet Forwarding Rate | 0.89Mpps |
MAC Address | 2K |
Port lightning protection | 4KV |
Standard Protocol | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3x Flow Control IEEE802.3az EEE |
Power Supply | AC 200~240V 50/60HZ |
Size | 152mm × 69.4mm × 36mm |
Environmental Specification | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
Product Description
CS1106PM | 4*10/100M Auto-negotiation RJ45 ports + 2*100M RJ45 Uplink ports |
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*100M RJ45 Uplink ports |
Total Power Supply 53W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 1.2Gbps |
Packet Forwarding Rate 0.89Mpps | MAC Address 2K |
Port lightning protection 4KV | Standard Protocol
IEEE 802.3at、IEEE 802.3af
|
Power Supply AC 200~240V 50/60HZ | Size 152mm × 69.4mm × 36mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
